Which Penetrating Oil or Spray Lubricant Should I Use?



Compare Muscle Penetrating Oil SL-10™, Extreme Conditions SL-10™, and Moist-Out MO-10™

Penetrating oils and spray lubricants can perform different maintenance functions. Some are needed to work into rusted or seized components. Others have to provide continued lubrication, displace moisture, or protect metal surfaces against corrosion after application.

Muscle Products Corp. offers three lubricants that overlap in some functions but are formulated for different priorities:

  • Penetrating Oil SL-10™ — for penetration combined with heavy-duty, continued lubrication

  • Extreme Conditions SL-10™ — for demanding environments where heavy-duty lubrication, water displacement, and enhanced corrosion protection are priorities

  • Moist-Out MO-10™ — for moisture displacement, light lubrication, and applications involving damp electrical or electronic equipment

Understanding the differences can make it easier to pick the product that best fits your objective.

Key Takeaways

  • Use Penetrating Oil SL-10™ when you need to loosen rusted or seized components and want heavy-duty lubrication to remain.

  • Use Extreme Conditions SL-10™ when equipment is exposed to water, corrosive atmospheres, or demanding environmental conditions and requires heavy-duty lubrication and corrosion protection.

  • Use Moist-Out MO-10™ when moisture displacement is the primary concern, particularly around damp electrical or electronic systems, or when a lighter spray lubricant is needed.

  • All three provide penetrating, lubricating, and corrosion-protection benefits, but their primary strengths differ.

  • The first step is to identify the problem you want to solve.




Why Are There Different Types of Penetrating Oils and Spray Lubricants?

A stuck bolt, an exposed industrial chain, and a moisture-contaminated electrical system present very different maintenance problems.

A penetrating lubricant that’s meant to free corroded hardware needs to reach very small clearances between adjoining metal surfaces. A lubricant for a chain or cable must continue reducing friction after application. Equipment exposed to moisture or corrosive environments might require extra protection against water and corrosion.

That’s why the terms penetrating oil, spray lubricant, water-displacing lubricant, and corrosion inhibitor can overlap.

The first step in choosing between these Muscle lubricants is identifying the primary problem you’re trying to solve.

Penetrating Oil SL-10™: Penetration Plus Heavy-Duty Lubrication


Group of Penetrating Oil SL-10™ packaging: 1 gallon, 16-oz bottles with and without trigger sprayer.

Best suited for: Rusted and seized components, general maintenance, industrial equipment, automotive service, and metal mechanisms requiring heavy-duty lubrication.



Penetrating Oil SL-10™ is designed for situations where freeing a stubborn nut or bolt is only part of the job.

It penetrates into hard-to-reach metal areas and around rusted or corroded components, reducing resistance as fasteners and mechanisms are worked free. After penetration, SL-10 continues to provide heavy-duty lubrication to the metal surfaces.

This combination makes it especially useful for applications such as:

  • Rusted nuts, bolts, and threaded connections

  • Hinges and pivots

  • Bushings and linkages

  • Heavy-duty chains and chain drives

  • Braided steel cable and wire rope

  • Open bearings

  • Open gears

  • Couplings and pulleys

  • Augers

  • Shop tools and equipment

  • Other exposed metal mechanisms

SL-10 contains Metal Treatment MT-10® and Power-Lift Grease PL-10™ for enhanced lubrication.

When Penetrating Oil SL-10™ Makes the Most Sense

Choose Penetrating Oil SL-10™ when your priorities are in this order:

Penetration to free stuck components + heavy-duty lubrication + corrosion protection

For example, if you’re servicing a corroded linkage that will continue moving after it’s been freed, SL-10 provides both the initial penetrating action and the residual lubrication needed during operation.

It’s also a practical general-purpose choice for maintenance departments and repair shops that routinely encounter both rusted hardware and exposed moving mechanisms.

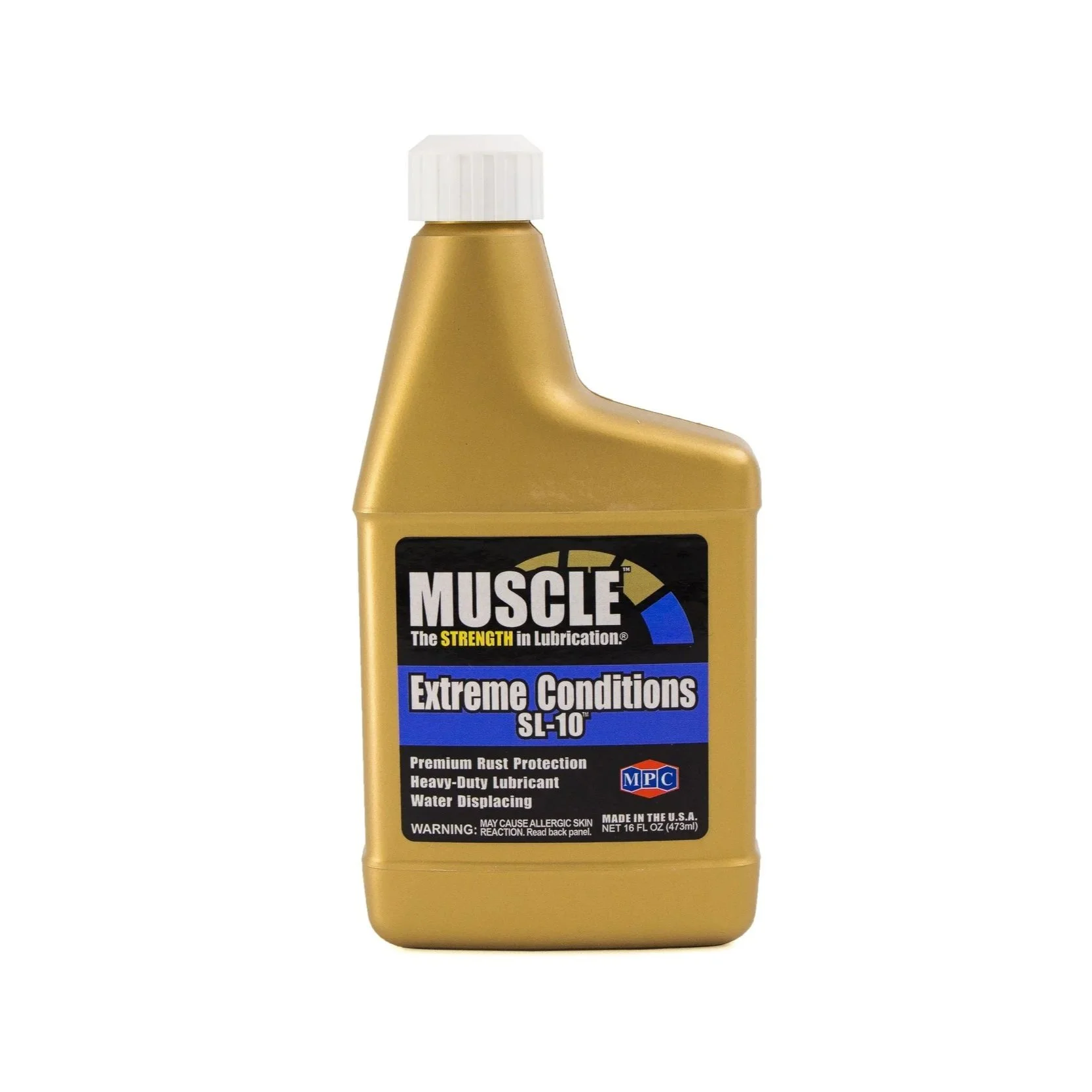

Extreme Conditions SL-10™: For Water, Corrosion, and Demanding Environments



Best suited for: Equipment exposed to water, corrosive atmospheres, outdoor conditions, or other demanding environments where heavy-duty, industrial lubrication and enhanced corrosion protection are important.



Extreme Conditions SL-10™ combines penetrating and heavy-duty lubricating properties with an emphasis on water displacement and corrosion protection.

Like Penetrating Oil SL-10™, it works into difficult-to-reach areas, loosen seized or corroded components, and lubricate chains, cables, bearings, bushings, pulleys, hinges, couplings, and other metal mechanisms.

The main distinction is the environment in which it’s intended to perform.

Extreme Conditions SL-10™ provides a thin-film rust preventive for ferrous metal surfaces and is formulated to protect against rust and corrosion, including exposure to corrosive atmospheres. It also rapidly sheds water contamination.

Recommended applications include:

  • Heavy-duty industrial chains

  • Wire rope and braided steel cable

  • Chain drives

  • Drag lines

  • Bearings and bushings

  • Couplings and pulleys

  • Hinges and linkages

  • Augers

  • Tools and metal mechanisms

  • Coiled or stacked metals

  • Equipment requiring protection from moisture and corrosion

  • Metal surfaces requiring rust protection during indoor storage

When Extreme Conditions SL-10™ Makes the Most Sense

Choose Extreme Conditions SL-10™ when your priorities are in this order:

Enhanced corrosion protection + water displacement + heavy-duty lubrication + penetration

Independent ASTM laboratory testing showed these results:

Rust test, 4 hr:  Pass (no rust) ASTM D665A

Salt spray test, > 136+ hr:  Pass (no rust)* ASTM B117

*Sample panels tested were dipped in Extreme Conditions SL-10™ for 1 minute and allowed to dry  for 24 hours.

For equipment exposed to moisture, industrial contaminants, or corrosive environments, that additional protection might be more important than penetration or lubrication.

Moist-Out MO-10™: Moisture Displacement and Light Lubrication


Group of Moist-Out MO-10™ packagings: 1 gallon, 16-oz bottles with and without trigger sprayer.

Best suited for: Damp electrical and electronic systems, moisture-contaminated equipment, and applications requiring penetrating action with lighter lubrication.



Moist-Out MO-10™ was formulated for a different purpose.

Although it penetrates, lubricates, and protects against corrosion, MO-10 is specifically formulated for quick moisture displacement and light lubrication.

Its migrating film moves beneath condensation and moisture, helping drive the moisture toward the surface where it can dry or be wiped away. This makes MO-10 particularly useful around damp or moisture-affected electrical and electronic components.

Applications include:

  • Electrical circuits

  • Wet or damp ignition components

  • Motors

  • Controls

  • Starters

  • Relays

  • Electronic equipment

MO-10 can also be used as a light lubricant on:

  • Locks

  • Hinges

  • Gears and gear trains

  • Levers

  • Linkages

  • Bearings

  • Cams

  • Tools

  • Metal mechanisms

  • Industrial equipment

It also provides protection against rust and corrosion on treated metal surfaces.

When Moist-Out MO-10™ Makes the Most Sense

Choose Moist-Out MO-10™ when your priorities are:

Moisture displacement + light lubrication + penetration

Its ability to displace moisture is important when dampness is interfering with electrical or mechanical operation.

MO-10 is also a great choice when a lighter lubricant is better than the heavier lubricating performance provided by the SL-10 products.

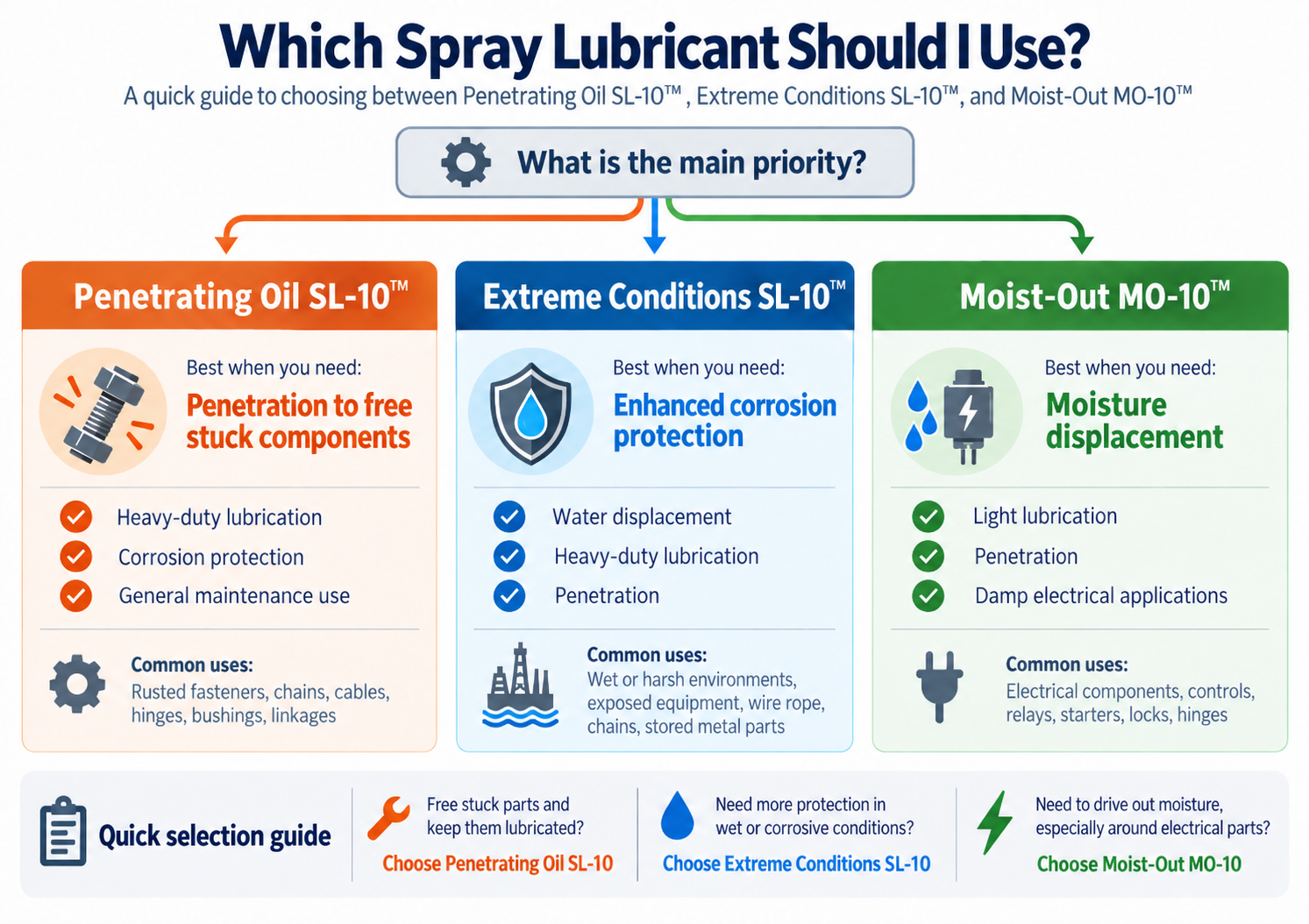

Quick Guide: Which Product Should I Use?




What Do All Three Have in Common?

Although their primary functions differ, Penetrating Oil SL-10™, Extreme Conditions SL-10™, and Moist-Out MO-10™ share several characteristics. All three provide some combination of:

  • Penetration into hard-to-reach areas

  • Lubrication

  • Loosening and freeing difficult metal mechanisms

  • Protection against rust and corrosion

The difference is basically which is most important to you.

Final Takeaway

Penetrating Oil SL-10™, Extreme Conditions SL-10™, and Moist-Out MO-10™ overlap in some applications, but they are not intended to solve (or prevent) exactly the same issue.

Start With the Problem

A simple way to select between the three products is to ask three questions:

Is the main problem a rusted or seized component that also needs heavy-duty lubrication afterward? Or do you just want a heavy-duty lubricant?

Start with Penetrating Oil SL-10™.

Will the equipment operate or be stored where water exposure and corrosion protection are major concerns?

Consider Extreme Conditions SL-10™.

Is moisture displacement—particularly around damp electrical or electronic equipment—the main objective? Or do you need a lighter lubricant?

Consider Moist-Out MO-10™.

Some applications will overlap. A hinge, chain, bearing, or metal mechanism might technically be suited for more than one product. If this is the case, the operating environment and type of residual lubrication or protection needed should guide your selection.

Frequently Asked Questions

  • Both products penetrate hard-to-reach areas, loosen seized or corroded components, provide heavy-duty lubrication, and protect metal surfaces against rust and corrosion.

    Penetrating Oil SL-10™ is well suited to general industrial, automotive, shop, and maintenance applications where penetration and heavy-duty lubrication are the primary requirements.

    Extreme Conditions SL-10™ places additional emphasis on water displacement and corrosion protection for equipment operating or stored in more demanding or corrosive environments.

  • Penetrating Oil SL-10™ is primarily intended for penetration combined with heavy-duty lubrication.

    Moist-Out MO-10™ is a lighter lubricant with particular emphasis on rapid moisture displacement. This makes it especially useful for damp electrical or electronic equipment as well as light mechanical lubrication applications.

  • Capillary action helps a liquid move into very small accessible spaces between surfaces. In a rusted threaded connection, for example, it can help the penetrating oil wick into narrow clearances around the threads.

    This brings the lubricant closer to the rusted or high-friction surfaces where it can help reduce resistance as the parts are worked apart.

  • No. A penetrating oil shouldn’t be confused with a chemical rust remover.

    Its primary purpose is to work into accessible spaces around rusted or corroded parts and provide lubrication that helps reduce resistance between the affected surfaces. Loose rust and scale should be removed when practical before application.

  • Some can. Penetrating Oil SL-10™ is specifically formulated to provide heavy-duty lubrication after it penetrates. Extreme Conditions SL-10™ also provides heavy-duty lubrication, while Moist-Out MO-10™ provides lighter lubrication along with its moisture-displacement properties.

    The right product depends on the amount of lubrication and environmental protection the application requires.
