Muscle MT-10® and Boundary-Film Lubrication: A Technical Explanation
A Practical Guide for Maintenance Teams Focused on Equipment Life and Operating Costs
Key Takeaways:
Friction and wear often begin where the lubricant film becomes thin, and metal surfaces contact under load.
MT-10® is designed to help reduce those friction-related conditions inside lubricated equipment.
By supporting boundary-film protection, MT-10® reduces heat, wear, and surface distress.
Better friction control promotes longer component life, smoother operation, and reduced maintenance pressure.
MT-10® is added to the existing lubricant and should be used as part of a sound maintenance program.
Application results can be verified through operating temperature trends, inspection, oil analysis, and equipment performance records.

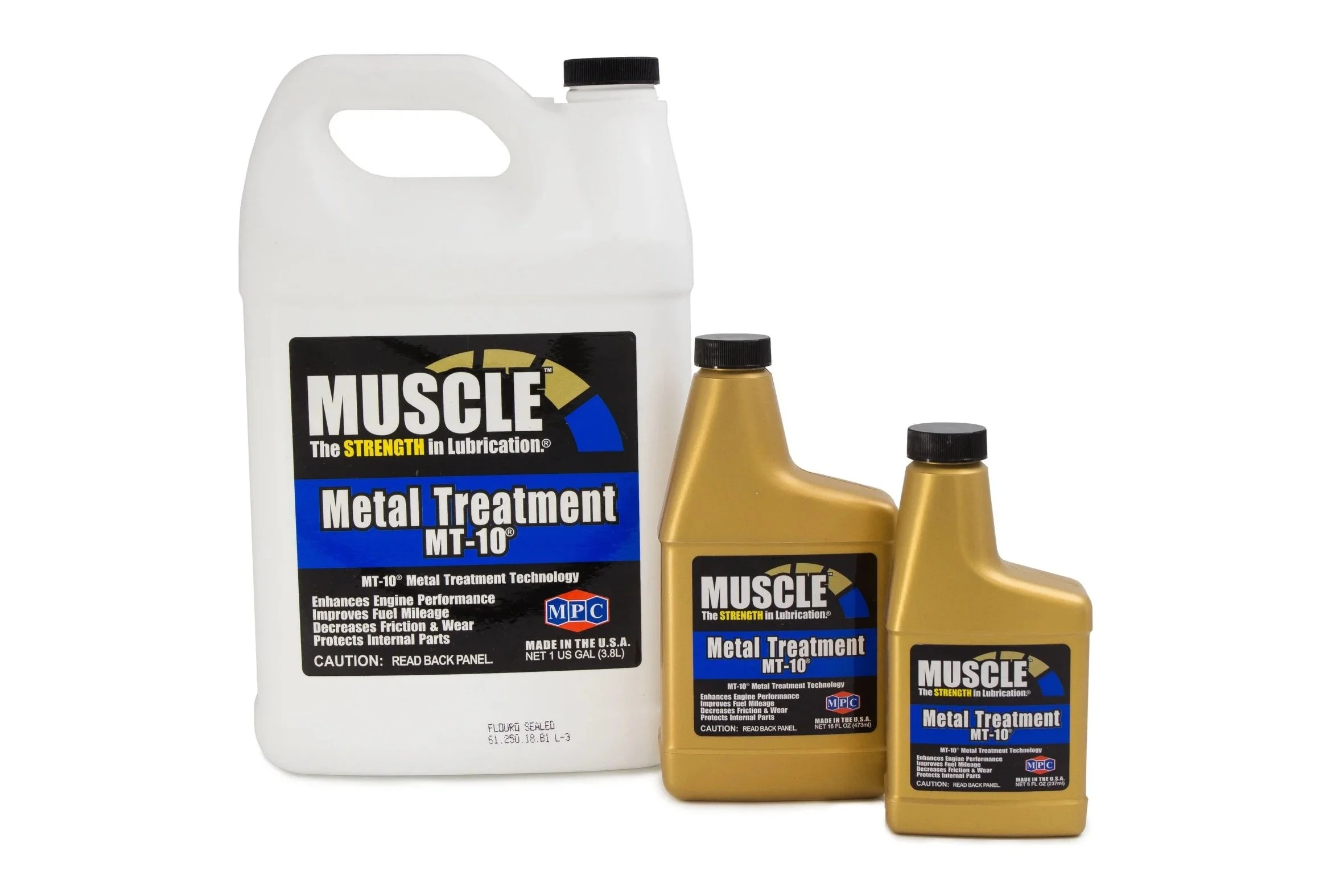

Metal Treatment MT-10® is a proprietary anti-friction lubricant additive designed to be used with the existing lubricant in engines, transmissions, differentials, gear systems, bearings, pumps, electric motors, hydraulic systems, and other lubricated equipment. It is not a stand-alone lubricant. MT-10® is a blend of highly refined mineral oils and EP additives and contains no solid lubricants, chlorinated solvents, or phosphate compounds. It will not build up or change tolerances. In practical terms, MT-10® works at the metal/lubricant interface under load, where friction, heat, and wear are generated.
The key to understanding how MT-10® works is by starting with the real condition of the metal surface. Even highly machined metal surfaces that appear perfectly smooth are actually rough on a microscopic scale. They contain peaks, valleys, pores, fissures, and irregular contact points known as asperities. When the lubricant film is thick enough, those surfaces remain separated. But when load increases, speed drops, temperature changes, or the lubricant film becomes too thin, the contact shifts into mixed or boundary lubrication. In this regime, more of the load is carried at the asperity level, and friction, temperature, scuffing risk, and wear all rise sharply.
MT-10® is designed for this operating regime. Its active halogen-based, extreme-pressure chemistry reacts at the hottest and most highly loaded microscopic contact points to form a thin tribochemical boundary film on the metal surface. This film acts as a sacrificial, lower-shear protective layer at the interface, helping reduce direct metal-to-metal contact, adhesive damage, scoring, and severe wear. In tribology terms, this controlled boundary-film formation is the primary mechanism that best explains MT-10®’s performance.
What is Boundary Lubrication?
Boundary lubrication occurs when the lubricant film between moving surfaces becomes extremely thin, and the load is carried partly by microscopic metal-to-metal contact points.
This can happen during:
Equipment start-up
Heavy load conditions
Low-speed operation
High-temperature operation
Shock loading
Stop-and-go operation
Poor surface finish conditions
Areas where the lubricant film is repeatedly squeezed or sheared
In full-film lubrication, the oil film does most of the work. In boundary lubrication, the surface chemistry of the metal and additive package becomes much more important.
Metal Treatment MT-10® is formulated to support this boundary area by forming a protective surface film on the metal. This film helps reduce friction, heat, and wear at the points where surface contact is most likely to occur.
To further understand where MT-10® fits, it helps to separate two related ideas: oil-film thickness and surface-film protection.
Why Viscosity Alone is Not Enough
Viscosity is important. The correct oil viscosity helps maintain fluid-film separation between moving parts. However, viscosity alone does not solve every lubrication problem.
Many machines operate in mixed-film or boundary-lubrication conditions at least part of the time. This can happen during start-up, heavy loading, low-speed operation, shock loading, elevated temperatures, or any condition where the lubricant film becomes too thin to fully separate the metal surfaces.
During those conditions, surface-active additive chemistry becomes especially important.
That is why Metal Treatment MT-10® is used with the existing lubricant. The base oil provides the fluid film. MT-10® adds surface-treatment and boundary-film support at the metal interface. The two functions work together.
More on Asperities
The high points on a metal surface are called asperities. These small peaks are typically where friction, heat, adhesive wear, scuffing, and surface damage begin.
When asperities from opposing surfaces contact each other, several things can happen. They may:
Shear across each other
Plow into the opposing surface
Generate localized heat
Create wear particles
Lead to scoring, galling, or surface fatigue over time
Metal Treatment MT-10® is designed to reduce the severity of these asperity contacts. Through boundary film formation and improving surface interaction, MT-10® reduces the frictional conditions that contribute to heat and wear.
This is why MT-10® is considered a “metal treatment” rather than a simple oil additive.
How MT-10® Helps Protect Metal Surfaces
A more technical explanation: Metal Treatment MT-10® is best understood through five surface-level mechanisms of improvement:
Controlled tribochemical boundary-film formation at loaded asperity contacts
Oxirane-based acid scavenging and corrosion inhibition
Pressure- and temperature-activated surface chemistry in mixed and boundary lubrication
Reduced asperity interaction and improved surface smoothness and load sharing
Near-surface conditioning of the contact zone under severe service
1. Controlled tribochemical boundary-film formation
The most important function of Metal Treatment MT-10® is the formation of a thin, dynamic boundary film at the loaded metal contact. This is not the same as plating, a heavy coating, or a permanent deposition. The film is formed where the contact is active, worn as sliding continues, and then renewed as operating conditions persist. That dynamic behavior is exactly what makes boundary-film additives effective: they protect the loaded interface when the base oil film alone is no longer sufficient.
2. Oxirane acid scavenging and corrosion inhibition
Halogen-based EP chemistry is highly effective under load, but it must be controlled. Without stabilization, reactive systems can generate acidic byproducts that contribute to corrosion or staining. Metal Treatment MT-10® addresses the problem through an oxirane-containing stabilizing system that functions as an acid scavenger and supports corrosion inhibition. This means the product is formulated not only to improve boundary-film protection, but to help manage any corrosive side reactions that may accompany EP chemistry.
3. Pressure- and temperature-activated surface chemistry
Metal Treatment MT-10® does not need to react everywhere in the machine at once. It becomes more relevant where it is needed most: at the high-pressure, high-temperature asperity contacts. Those localized contact conditions activate the surface chemistry and help create the protective tribofilm. This is why it’s important to understand that MT-10® is a surface-active treatment, not a bulk thickener or a product that simply changes the viscosity of the oil. It is carried throughout the system by the existing lubricant, but its protective action occurs on the metal surface.
4. Reduced asperity interaction and improved surface load sharing
As the protective film develops at the contact zone, it reduces the severity of direct asperity-to-asperity interaction. The result is smoother sliding at the loaded interface, less frictional heat, and less tendency for the contact to progress into scuffing or adhesive distress. This is the most technical way to describe how Metal Treatment MT-10® “smooths” and “seals” metal surfaces: not as a thick coating or permanent filling of the entire surface, but as a controlled boundary-film effect that protects and conditions the active contact zone, so the surfaces operate more uniformly under load.
5. Near-surface conditioning under severe service
Under repeated severe boundary contact, the topmost near-surface metal may also undergo tribological transformation. Studies of lubricated rolling contacts show that wear protection can depend not only on the reaction layer itself, but also on an underlying tribologically transformed zone whose structure varies with oil chemistry and additives. Metal Treatment MT-10® primarily forms a controlled tribochemical boundary film and supports limited near-surface conditioning of the contact zone as a secondary and service-dependent effect.

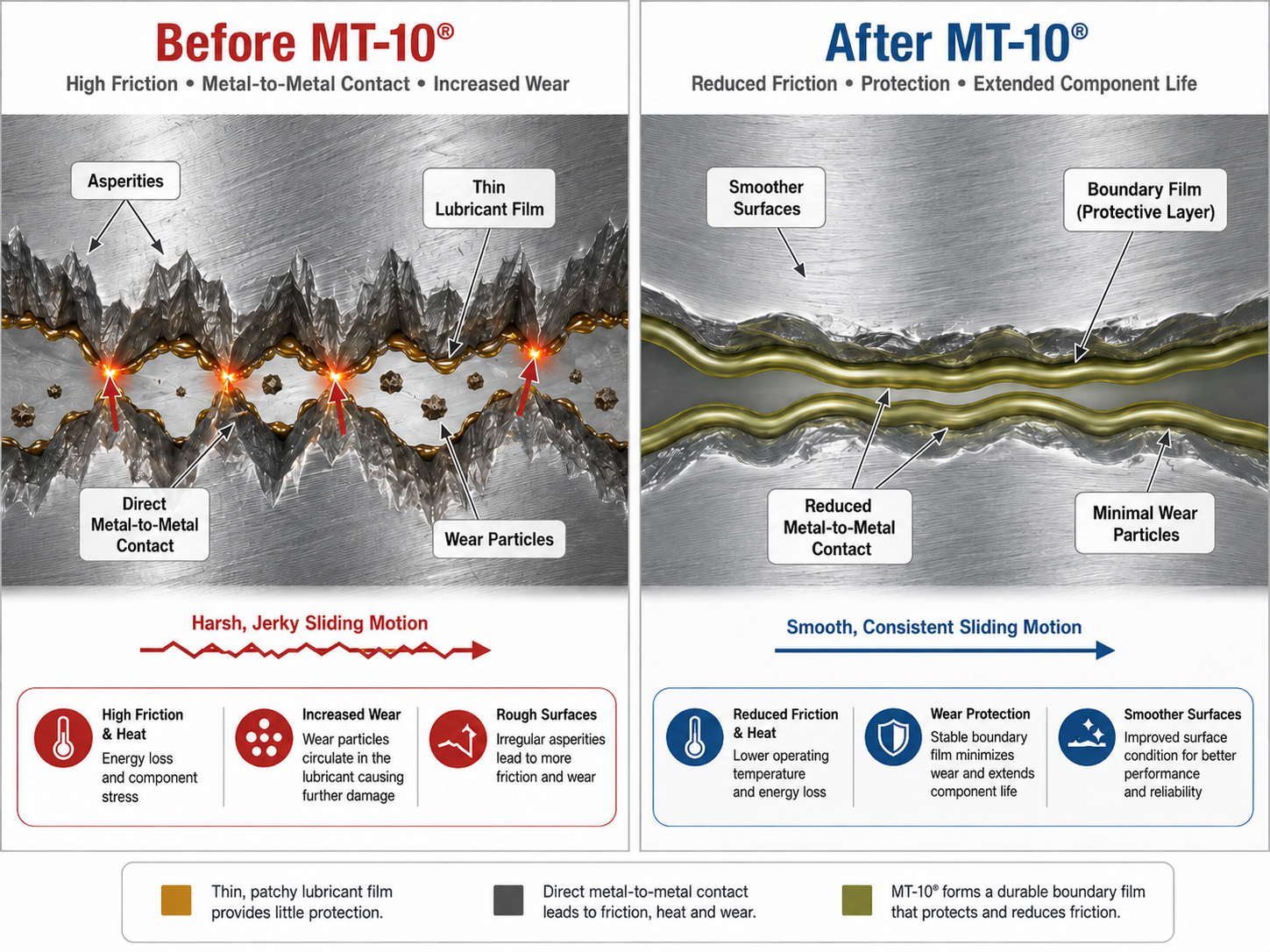

Illustration of how MT-10® supports boundary-film protection. Before treatment, rough metal asperities are more likely to contact under load. After MT-10® is added to the lubricant, a protective boundary film helps reduce metal-to-metal contact, friction, heat, and wear.
What this Means in Service
The practical takeaway is straightforward: Metal Treatment MT-10® adds chemically assisted protection when the machine is operating in the part of the lubrication curve where wear begins. When the base oil film becomes marginal, MT-10® helps the lubricant protect the loaded metal interface more effectively. This reduces friction-related heat, scuffing, and wear while supporting smoother operation, lower operating temperatures, and improved durability in systems that spend time in mixed or boundary lubrication.
MT-10® is an anti-friction lubricant additive that improves lubricity and load-carrying capacity, supports protective boundary film formation, and is formulated to treat the metal rather than act as a stand-alone lubricant. Four-Ball EP test data of LWI 246 and weld point greater than 800 kg under ASTM D2783 is consistent with a formulation aimed at high-load boundary protection.
Results can vary based on equipment condition, operating parameters, and maintenance practices. Field testing, oil analysis, and monitoring temperature trends are recommended to validate benefits in your specific application.
Final takeaway
Metal Treatment MT-10® is a proprietary metal-treatment additive that improves protection under mixed and boundary lubrication by forming a controlled, corrosion-managed tribochemical boundary film on loaded metal surfaces, while its oxirane-based stabilizing system helps suppress acidic byproducts that may otherwise contribute to corrosion.
The simplest way to explain MT-10® is:
The lubricant carries MT-10® to the metal surface.
The operating conditions activate the surface chemistry.
The treated metal surface becomes better protected during boundary lubrication.
The result is reduced friction, reduced heat, improved lubricity, and wear protection.
This is why MT-10® performs well in so many different lubricated systems.
Frequently Asked Questions
What is boundary lubrication?
Boundary lubrication occurs when the lubricant film becomes too thin to fully separate moving metal surfaces. Under these conditions, microscopic high points on the metal surface, called asperities, may come into contact and generate friction, heat, and wear.
What does MT-10® do to metal surfaces?
MT-10® helps condition the active contact zone by supporting protective boundary-film formation. It is not intended to plate, coat, or build up on parts in a way that changes equipment tolerances.
What are asperities, and why do they matter?
Asperities are microscopic peaks and rough points on metal surfaces. Even polished metal contains asperities. When opposing asperities contact each other under load, they can create friction, heat, wear particles, scoring, galling, or surface fatigue
Does MT-10® change the viscosity of the lubricant?
MT-10® should not be understood as a viscosity modifier. Its main function is surface-active protection at the metal contact zone, especially during mixed and boundary lubrication.
How should maintenance teams evaluate MT-10® performance?
Useful evaluation methods include comparing operating temperature trends, maintenance intervals, equipment noise, oil analysis results, wear metals, inspection findings, and downtime history before and after treatment.
When is MT-10® most useful?
MT-10® is most useful in lubricated equipment that experiences high load, start-up wear, low-speed operation, shock loading, elevated temperatures, or other conditions where the lubricant film may become thin.
